Optical communication field

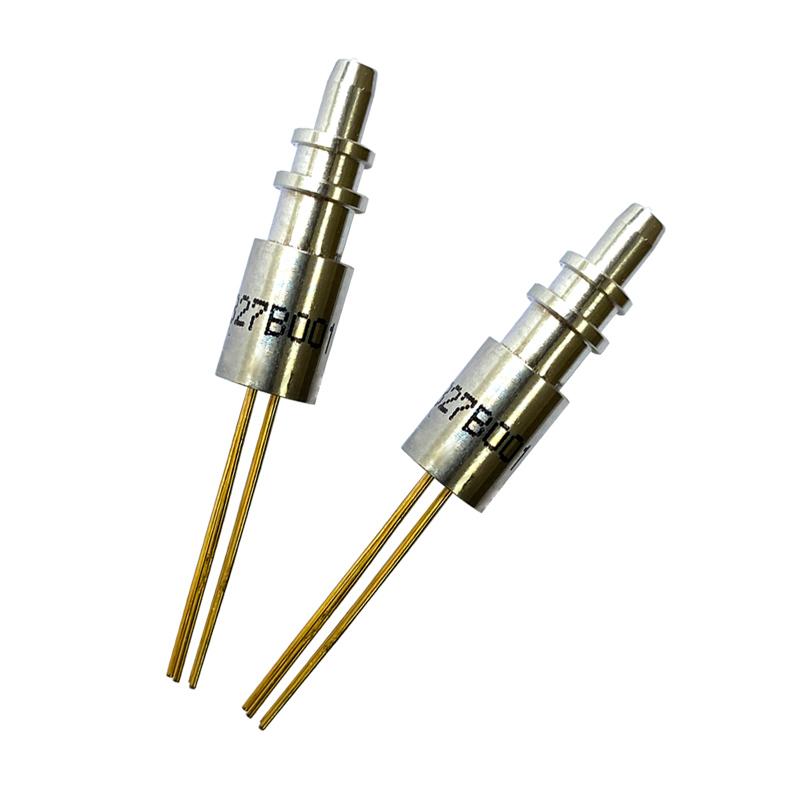

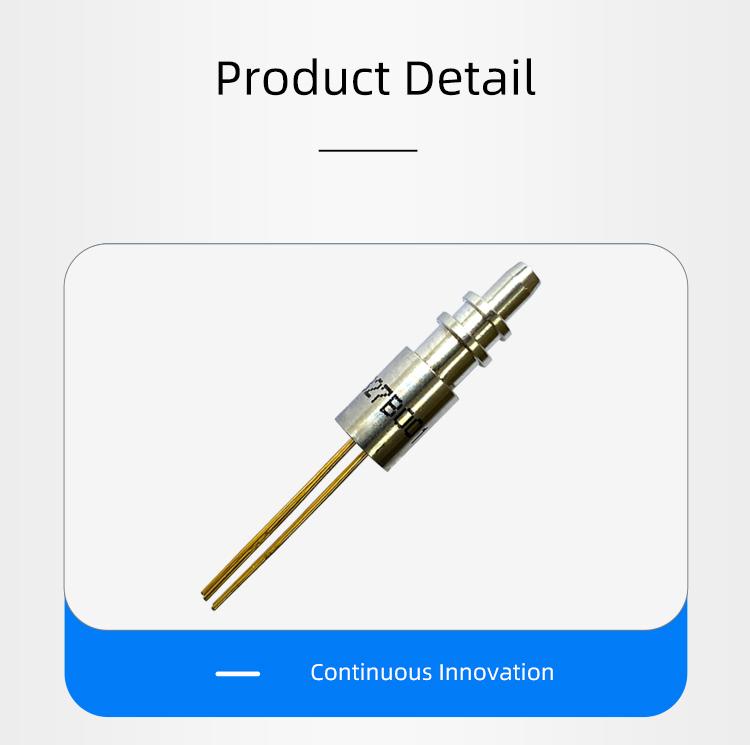

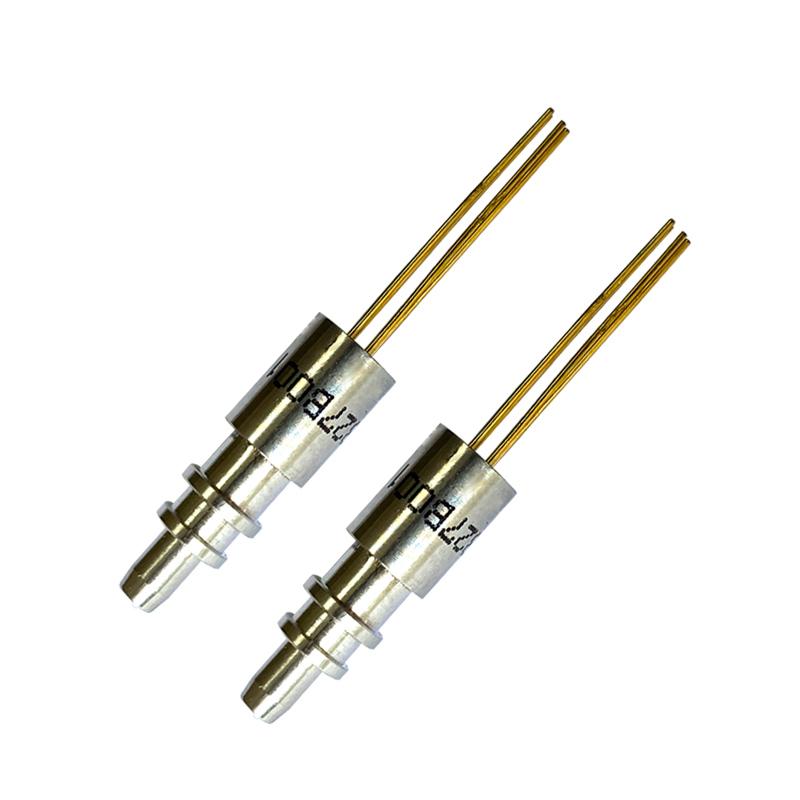

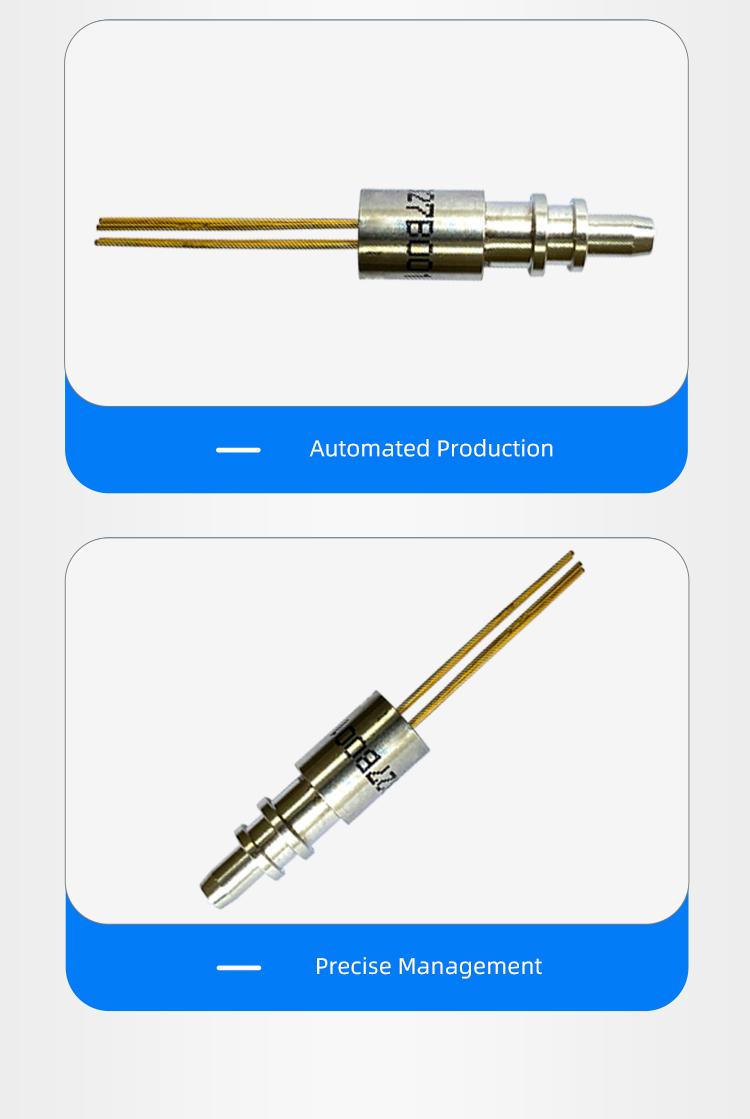

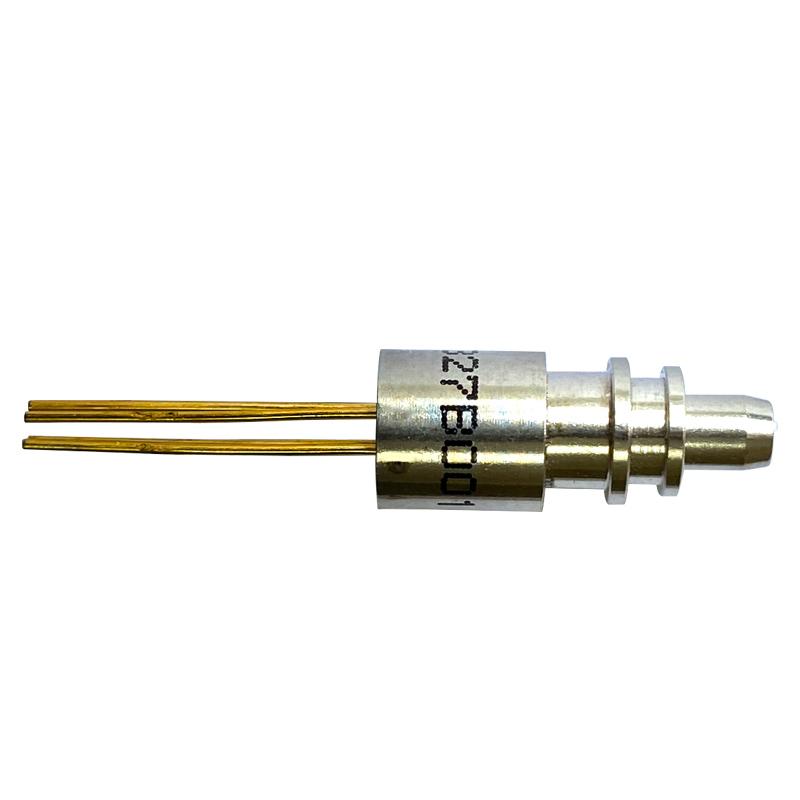

TOSA-LC 1.25Gbps 1310nm FP Transmitter Optical Subassembly

Features:
● Low Operating Current
● Low Threshold Current
● Excellent Reliability
● Industrial standard TO-56 package
● LC Receptacle
Applications:
● Digital Optical Communication
● Optical LAN



  • Wavelength :

    1310nm
  • Rate :

    1.25G
  • Power :

    0.8mW

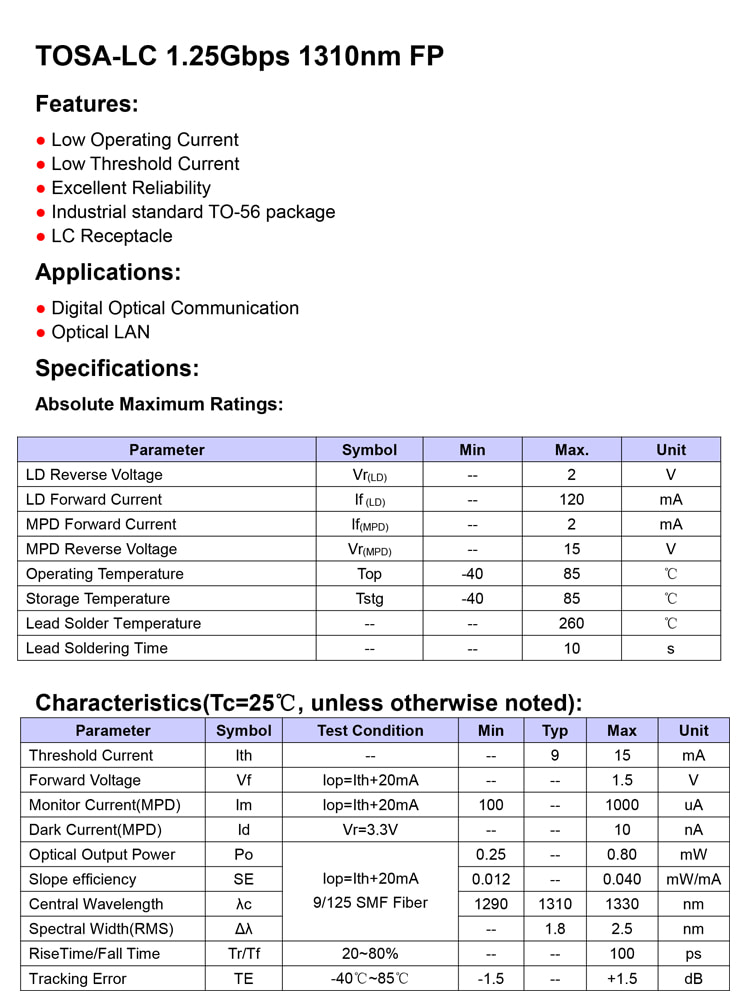

                                          TOSA-LC 1.25Gbps 1310nm FP

Features:

● Low Operating Current

● Low Threshold Current

● Excellent Reliability

● Industrial standard TO-56 package

● LC Receptacle

Applications:

● Digital Optical Communication

● Optical LAN

Specifications:

Absolute Maximum Ratings:

Parameter

Symbol

Min

Max.

Unit

LD Reverse Voltage

Vr(LD)

--

2

V

LD Forward Current

If (LD)

--

120

mA

MPD Forward Current

If(MPD)

--

2

mA

MPD Reverse Voltage

Vr(MPD)

--

15

V

Operating Temperature

Top

-40

85

Storage Temperature

Tstg

-40

85

Lead Solder Temperature

--

--

260

Lead Soldering Time

--

--

10

s



Characteristics(Tc=25℃, unless otherwise noted):

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Threshold Current

Ith

--

--

9

15

mA

Forward Voltage

Vf

Iop=Ith+20mA

--

--

1.5

V

Monitor Current(MPD)

Im

Iop=Ith+20mA

100

--

1000

uA

Dark Current(MPD)

Id

Vr=3.3V

--

--

10

nA

Optical Output Power

Po



Iop=Ith+20mA   9/125 SMF Fiber

0.25

--

0.80

mW

Slope efficiency

SE

0.012

--

0.040

mW/mA

Central Wavelength

λc

1290

1310

1330

nm

Spectral Width(RMS)

Δλ

--

1.8

2.5

nm

RiseTime/Fall Time

Tr/Tf

20~80%

--

--

100

ps

Tracking Error

TE

-40℃~85℃

-1.5

--

+1.5

dB
